Regular price$1,210.00
/
Tax included. Shipping calculated at checkout.

  • Orders ship in 2-3 business days
  • In stock, ready to ship
  • Inventory on the way

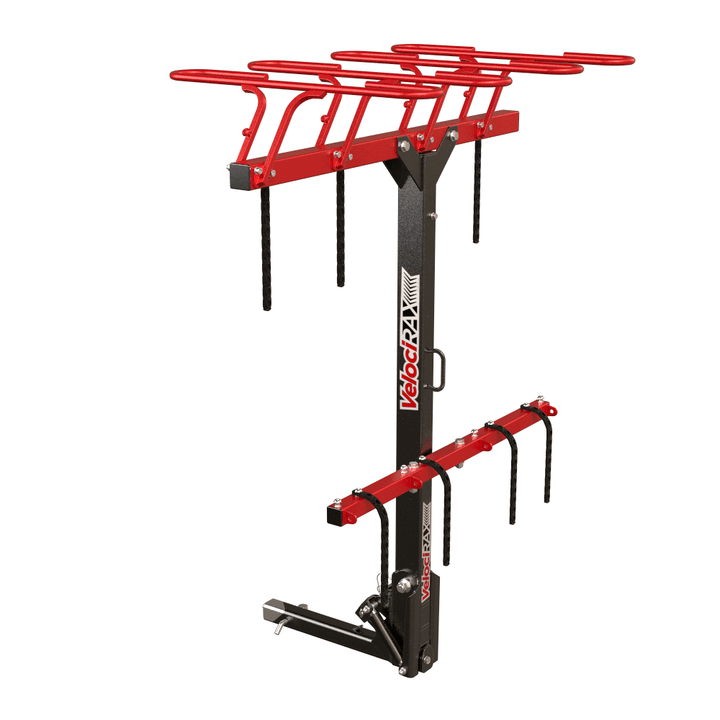

The VelociRAX 412 hitch-mounted vertical bike rack holds up to four bikes and has 30.5 cm (12-inch) spacing between tire baskets. This rack is ideal for small groups and can accommodate a range of bike builds, handlebar styles, and sizes. Load the VelociRAX 412 with your choice of bikes and let the rack do all the work so you can take bikes with you wherever you go. UV-tested rubber straps are included to quickly secure bikes in place while ONLY contacting the bike’s tires. A vertical hitch bike rack for four bikes is perfect for small families, spontaneous rides with friends, and road trips with a few other riders on board. If you are looking for a rack that is compact and can carry multiple bikes, look no further.

VelociRAX are patent pending with user-friendly features. There is no need to lift bikes onto this rack when using the roll-in and roll-out loading method, which means kids can load their bikes! Integrated hydraulic dampers assist fully loaded racks when lowering to the load position, so don’t worry about bikes crashing down when lowering this rack. All VelociRAX also come with a garage wall mount that can be used to store this rack with bikes when the rack is not on a vehicle.

- Hinge assist dampers for fully loaded hinging

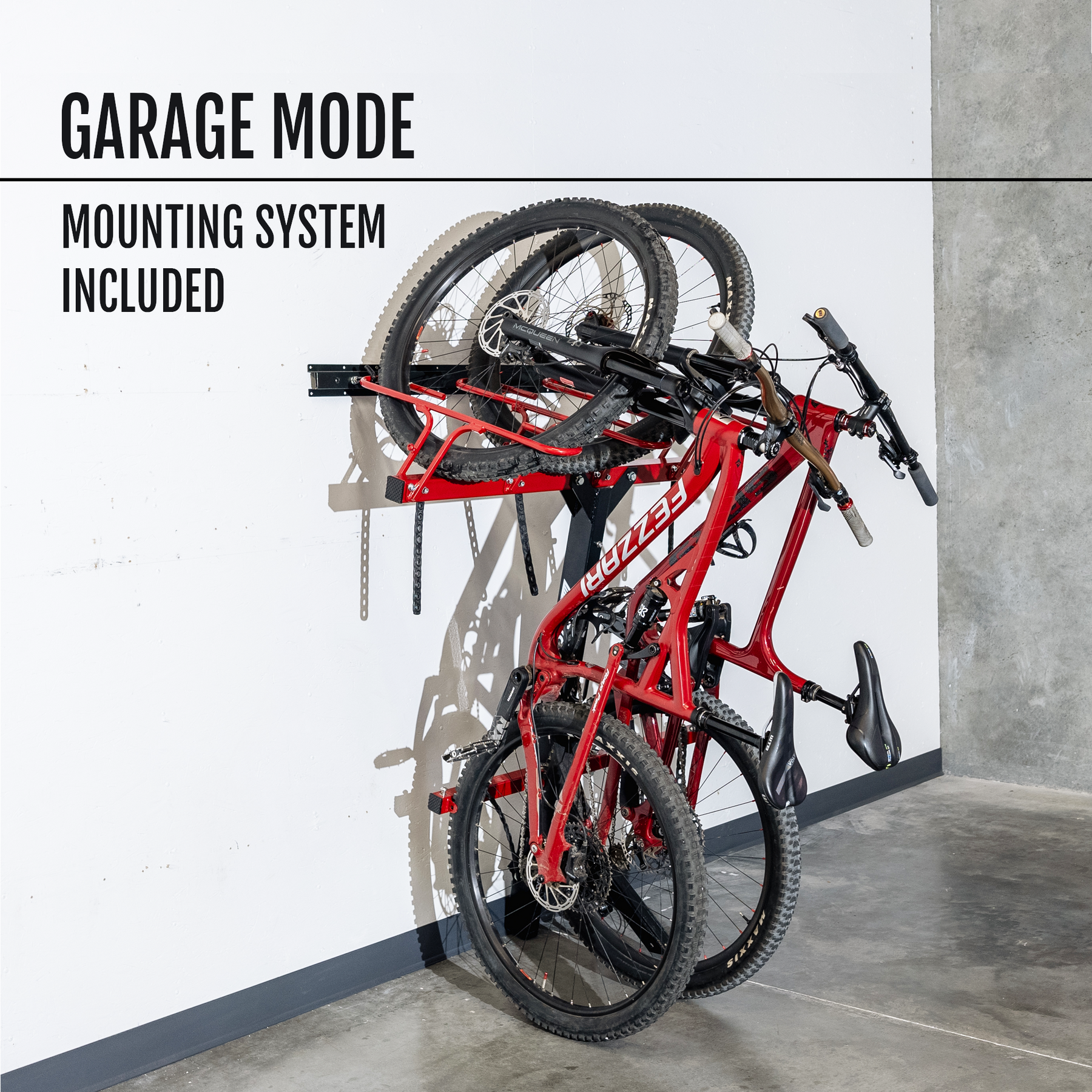

- Garage wall mounting kit
- Built-in anti-rattle mechanism
- VelociRAX tire straps
- Rubber bands for brake lever engagement
- 1/2 inch hitch pin with keyed lock
- All needed hardware
- Assembly and Use Instructions​

- 304.8 mm (12") spacing between all bikes

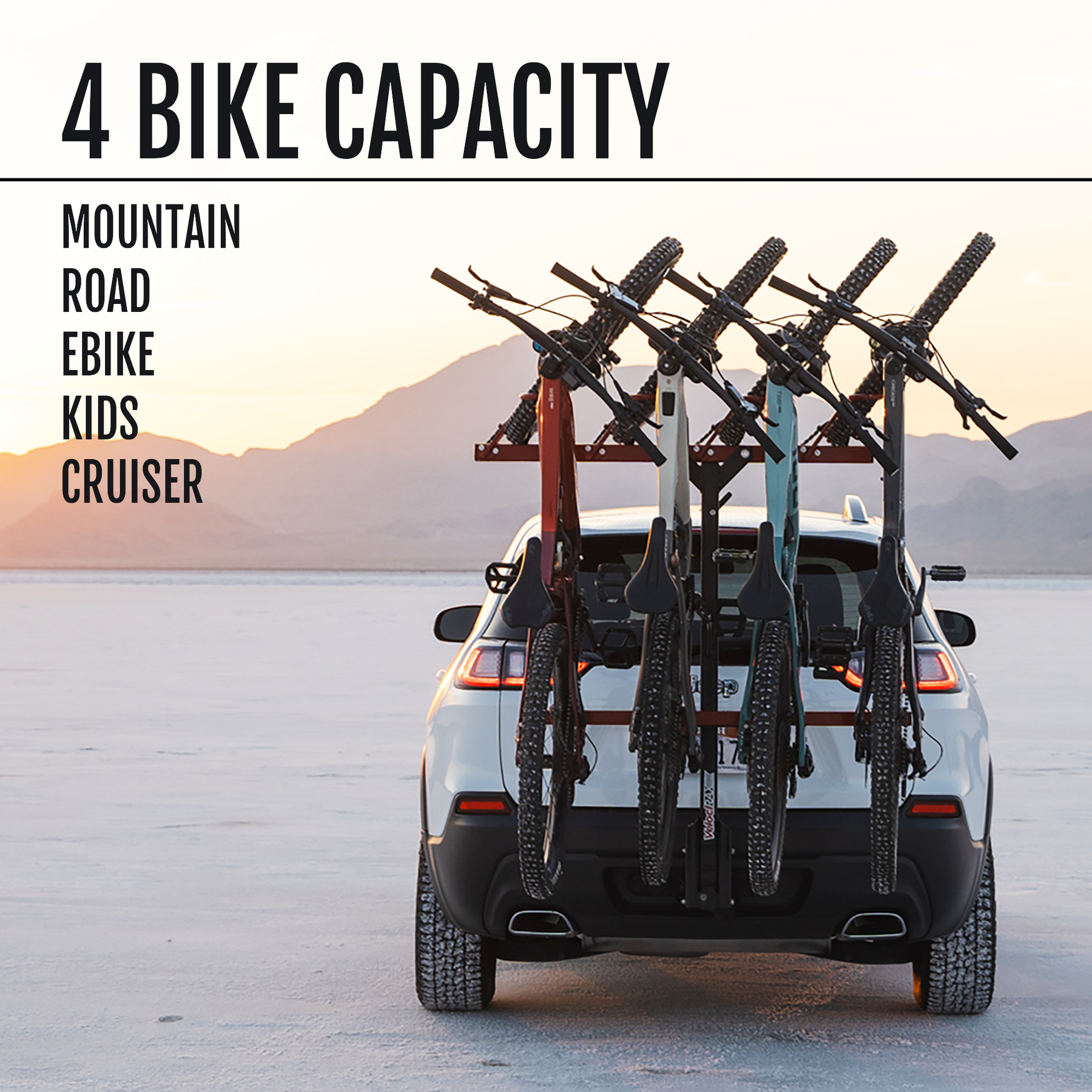

- Hitch mounted vertical bike rack holding up to 4 bikes
- Assembled width - 1244.6 mm (49")
- Assembled height - 1473.2 mm (58")
- Weight - 36.3 kg (80 lbs)
- Load capacity 104.3 kg (230 lbs) at 25 kg (55 lbs) per bike max
- eBike ready: 4 standard ebikes (we recommend removing batteries if you are able)
- Ships in 3 boxes 1 - 147.32 cm x 33.02 cm x 16.51 cm, 2 - 119.38 cm x 15.24. x 15.24, 3 - 68.58 cm x 33.02 cm x 20.32 cm (1 - 47"x6"x6", 2 - 27"x13"x8", 3 - 58"x12"x7")

- 86mm (3 3/8 inch) depth past center of hitch pin hole to insert a VelociRAX
- 50mm (2 inch) Class III  hitch with tongue capacity of 227kg (500 lbs)
** Note - Subaru CrossTrek and Outback and Ford Ranger may lack sufficient depth on the factory hitch receiver.

Instructions for building your VelociRAX
PDF                               VIDEO

- Orders ship in 2-3 business days

- Local pick up available in Dandenong South, VIC

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Self Lowering

Integrated Hydraulic Dampers

Fully assisted lowering down to the loading position.

Fast & Easy Loading

Hit the trails faster, pack up and be on your way easier with roll in and out loading.

Vehicle Access

Get to all your gear without removing your rack.

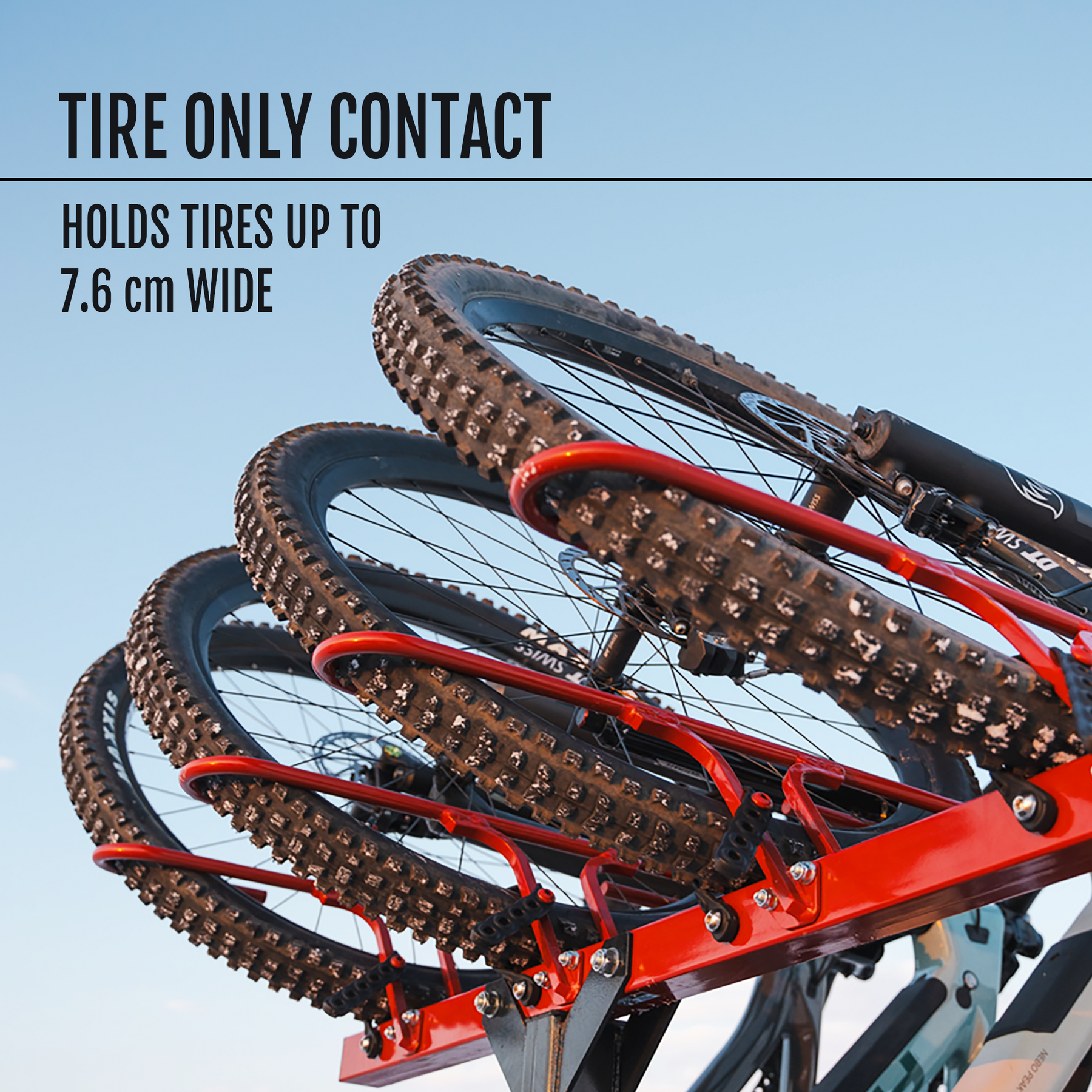

Tire Only Contact

No hanging by the forks or frame, risking damage to expensive bikes, VelociRAX feature contact only via tires to protect your bikes.
